Generac Air Filter Replacement Guide by Model Series

A clogged air filter is one of the most overlooked causes of generator problems. It does not just reduce power output. It can cause hard starting, black smoke, carbon-fouled spark plugs, and even engine damage over time. The frustrating part? Replacing a Generac air filter Replacement takes less than five minutes and costs less than a coffee. Yet many generator owners never check it until something goes wrong.

In this guide, we show you exactly where the air filter is located on every major Generac series—from 8kW Guardian standby units to GP portable generators. We cover the correct replacement procedure, the exact part numbers for each model family, and how often you should change the filter to keep your generator breathing clean. Whether you are doing routine maintenance or troubleshooting a rough-running engine, this guide has you covered.

Why Your Air Filter Replacement Matters More Than You Think

Your generator’s engine is essentially an air pump. It pulls in oxygen, mixes it with fuel, ignites the mixture, and expels exhaust. The air filter Replacement sits at the intake, blocking dust, pollen, insects, and debris from entering the combustion chamber. When the filter is clean, airflow is unrestricted and the engine runs efficiently.

When the filter clogs, the engine suffocates. It cannot draw enough air, so the fuel mixture becomes overly rich. That leads to:

• Hard starting or no-start conditions — The engine cannot get the air-fuel ratio right
• Reduced power output — Less air means less complete combustion
• Black smoke from the exhaust — Unburned fuel exits as soot
• Carbon fouled spark plugs — Rich mixtures deposit carbon on the electrode
• Increased fuel consumption — The engine wastes fuel trying to compensate
• Premature engine wear — Abrasive particles bypass a damaged filter and score cylinder walls

A five-minute filter replacement prevents all of these problems. It is the cheapest maintenance you can perform.

When to Change Your Generac Air Filter

Generac recommends inspecting the air filter every 100 hours of operation or at least once per year—whichever comes first. However, your environment matters. Generators in dusty, rural, or construction areas need more frequent attention.

Air Filter Location on Generac Standby Generators

On Generac air-cooled standby generators, the air filter is housed inside a plastic enclosure mounted on the side of the engine. The exact location and access method vary slightly by kW rating and enclosure design.

8kW to 11kW Guardian Models

On smaller standby units (8kW, 10kW, 11kW), the air filter housing is located on the left side of the engine (when facing the front of the generator). The housing is a black plastic box with a snap-on cover held by two metal clips.

To access it:

1. Make sure the generator is off and cooled.
2. Open the side service panel or lift the top cover, depending on your model year.
3. Locate the black rectangular housing on the side of the engine.
4. Squeeze the two metal clips toward the center and lift the cover off.
5. The filter element sits inside. Pull it straight out.

13kW to 26kW Guardian Models

Larger standby units use a bigger engine and a correspondingly larger air filter. On 13kW through 26kW models, the housing is still on the side of the engine but may be oriented vertically instead of horizontally. The cover is held by spring-loaded clips or thumb screws.

Some Evolution series units have a two-stage system: a foam pre-cleaner wrapped around a paper element. If your unit has this setup, inspect both pieces. The foam pre-cleaner can be washed and reused, but the paper element must be replaced when dirty.

Air Filter Location on Generac Portable Generators

Portable generators expose their air filters to more dust and debris because they operate at ground level and often in construction or camping environments. Generac places the filter in a protected housing, but it still needs regular attention.

GP Series Portable Generators

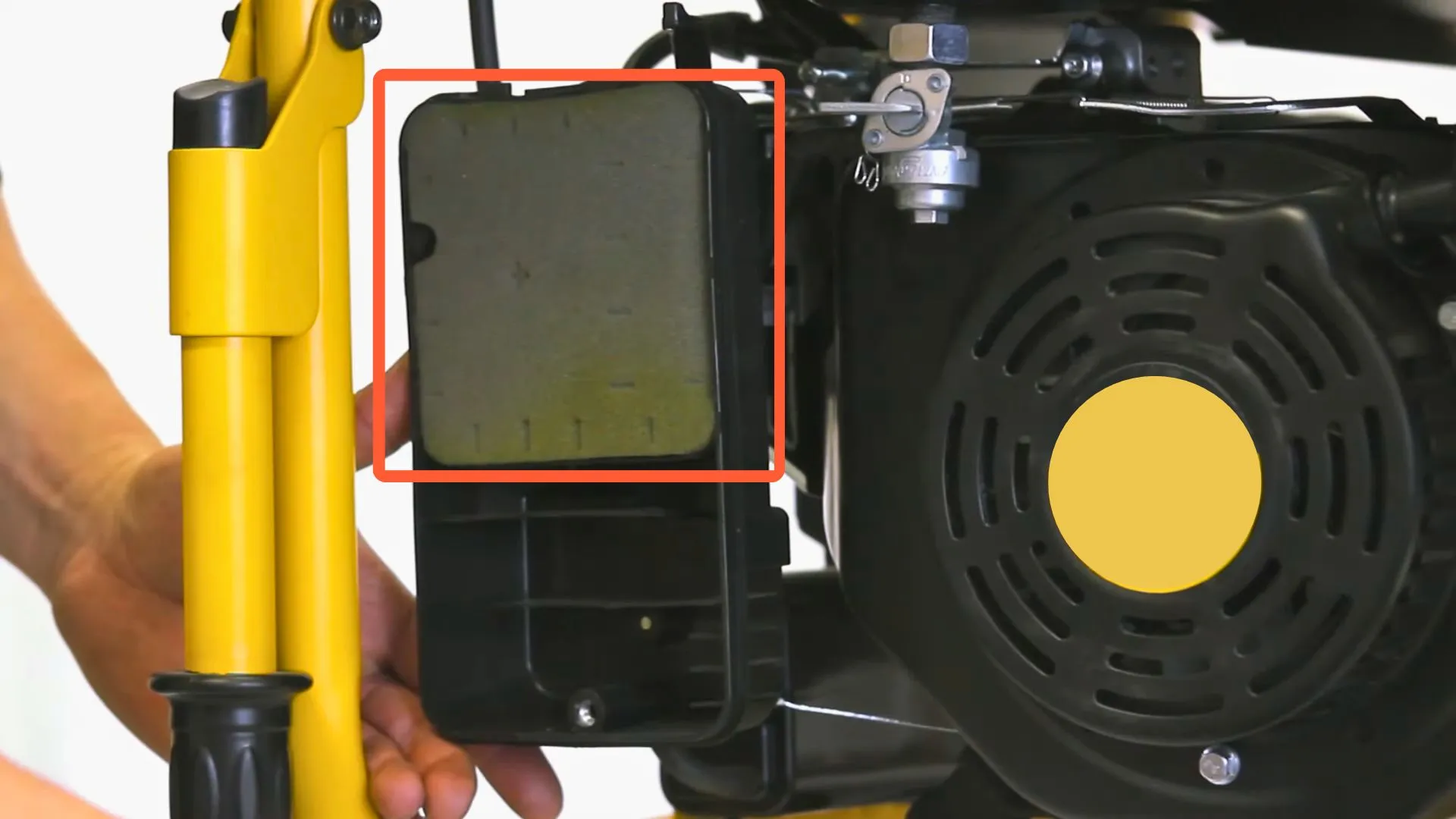

On GP series units, the air filter housing is a black plastic box mounted on the side of the engine shroud. It is held by one or two screws or plastic clips.

1. Locate the housing on the side of the engine, near the carburetor.
2. Remove the screw or unsnap the clips.
3. Lift the cover to expose the filter element.
4. Remove the element and inspect it.

Inverter Generators (iQ Series)

Inverter generators have compact engines with tightly integrated components. The air filter is usually inside a small circular or rectangular housing on the side of the engine. Access typically requires removing one screw and pulling the cover straight off. Do not force it—the plastic tabs break easily.

Step-by-Step Air Filter Replacement

Replacing a Generac air filter is straightforward. Follow these steps for any model:

1. Shut down the generator and let it cool for at least 15 minutes.
2. Disconnect the battery negative terminal to prevent accidental starting.
3. Access the filter housing by opening the generator enclosure or removing the side panel.
4. Release the housing clips or screws. On standby units, squeeze the metal clips inward. On portables, remove the retaining screw.
5. Remove the old filter. Pull it straight out. Note which direction it was oriented—some filters have a specific airflow direction.
6. Clean the housing. Use a shop towel to wipe out dust and debris from the housing interior. Do not let dirt fall into the intake throat.
7. Install the new filter. Seat it fully in the housing. Make sure it sits flat and the sealing edge is not folded or crimped.
8. Reinstall the cover. Snap the clips or tighten the screw securely.
9. Reconnect the battery and close the enclosure.
10. Start the generator and verify smooth operation.

Generac Air Filter Part Numbers by Model Series

Generac uses different air filter shapes and sizes depending on the engine platform. Using the wrong filter creates gaps that allow unfiltered air to bypass the element. Always match the part number to your model.

At Universal Generator Parts, we stock OEM Generac air filters as well as UGP aftermarket alternatives that match the same dimensions and filtration specs. Every filter is cross-referenced by model number so you receive the correct fit.

Can You Clean a Generac Air Filter Instead of Replacing It?

It depends on the filter type.

Paper elements (most standby generators): No. Paper filters cannot be washed. Water damages the fibers and reduces filtration efficiency. If a paper filter is dirty, replace it. Attempting to blow it out with compressed air can tear the paper or embed debris deeper into the pleats.

Foam elements (some portable and inverter generators): Yes. Foam filters can be cleaned and reused:

1. Remove the foam element from the housing.
2. Wash it in warm water with mild dish soap.
3. Squeeze gently—do not twist or wring, which tears the foam.
4. Rinse until the water runs clear.
5. Let it air dry completely. Do not use a heat gun or dryer.
6. Re-oil lightly with clean engine oil. Squeeze out excess oil so the foam is damp, not dripping.
7. Reinstall in the housing.

Frequently Asked Questions

Where is the air filter on a Generac 22kW generator?
On a 22kW Generac Guardian standby generator, the air filter is located inside a black plastic housing on the left side of the engine. Open the side service panel, squeeze the two metal clips on the housing cover, and lift it off to access the filter element.

What happens if I run my generator with a dirty air filter?
A dirty air filter restricts airflow, causing a rich fuel mixture. This leads to hard starting, reduced power, black exhaust smoke, carbon-fouled spark plugs, and increased fuel consumption. In severe cases, it can cause the engine to stall or fail to start entirely.

Can I use a generic air filter in my Generac generator?
You can use a high-quality aftermarket filter that matches the exact dimensions and pleat count of the OEM part. At Universal Generator Parts, our UGP aftermarket filters are engineered to the same specs as Generac OEM filters. Avoid universal “one-size-fits-all” filters that do not seal properly.

How do I know if my generator air filter needs replacing?
Hold the filter up to a bright light. If light does not pass through the pleats, the filter is clogged. Also look for visible dirt buildup, oil saturation, or damage to the rubber sealing edge. When in doubt, replace it—air filters are inexpensive insurance.

Do Generac maintenance kits include an air filter?
Yes. Most Generac maintenance kits include the correct air filter for the target model size. For example, the 8kW kit includes the rectangular paper filter, while 20–26kW kits include the larger filter plus a foam pre-cleaner. Check our maintenance kit listings for exact contents.

Why does my generator have a foam pre-cleaner wrapped around the paper filter?
The foam pre-cleaner catches larger dust particles before they reach the paper element. This extends the life of the main filter, especially in dusty environments. The foam can be washed and reused, but the paper element underneath must still be replaced on schedule.

Where can I buy a Generac air filter?
You can buy OEM and aftermarket Generac air filters at Universal Generator Parts. We stock filters for every Guardian, PowerPact, Synergy, GP, and iQ series generator, all matched to your model number.

Keep Your Generator Breathing Clean

A Generac air filter replacement is a five-minute job that protects your engine for months. By checking the filter every 100 hours and replacing it when it is clogged, you ensure reliable starting, full power output, and long engine life. Do not let a $10 filter become a $1,000 engine repair.

Before your next storm season, order a spare air filter and keep it with your maintenance kit. When you need it, you will be glad you planned ahead.
