Cummins Onan Generator Parts Lookup: How to Find the Right Part

Ordering the wrong part for an Onan generator is expensive and frustrating. Unlike Generac or Briggs & Stratton, where the model number alone is usually enough, Cummins Onan generator parts require three pieces of information: the model number, the specification (spec) letter, and the serial number. Skip any one of these and you risk receiving a fuel pump that does not fit, a control board with the wrong connector, or an air filter that leaves a gap for dust to enter your engine.

If you own an RV, marine vessel, or standby system powered by Onan, this guide will save you hours of confusion. We will show you exactly where to find the data plate, how to decode the model and spec numbers, which Cummins Onan generator parts fail most often, and how to use that information to order the correct replacement from Universal Generator Parts the first time.

Why Cummins Onan Generator Parts Lookup Is Different

Most generator brands use a single model number to identify the entire machine. Cummins Onan generator parts do not work that way. Onan uses a three-tier identification system that has been in place since the 1960s. The same base model—say, a 4.0 KY—can have a dozen different specification letters. Each spec letter represents a different engine configuration, fuel system, control board, or emissions package.

This means two RVs sitting side by side can both have “4KY” generators, but if one is Spec P and the other is Spec R, they may use completely different Cummins Onan generator parts. The carburetor jets differ. The control boards differ. Even the air filter housing can differ. That is why parts retailers always ask for the spec letter before confirming an order.

Here is what you need before ordering any Cummins Onan generator parts:

• Model Number — Identifies the product family (e.g., 4KYFA26100, 5.5HGJAD, HDKAJ)
• Spec Letter — The single letter at the end of the model that defines the exact configuration (e.g., P, R, B, N)
• Serial Number — The unique identifier for your specific unit, used for warranty and manufacturing date

Where to Find Your Onan Model and Spec Number

The data plate on a Cummins Onan generator is a metal or adhesive label mounted directly on the generator housing. The location varies depending on whether you have an RV genset, a marine unit, or a standby system.

RV Generators (KY, HGJ, HDK Series)

On RV generators, the data plate is usually located on the side of the generator housing, facing the compartment door. On slide-out tray-mounted units, it may be on the front face near the control panel. Look for a white or silver label with black text that reads “Cummins Power Generation” at the top.

Marine Generators (MDK, HDK Series)

Marine gensets typically have the data plate mounted on a flat surface of the sound shield or on the generator end frame. Salt air can corrode the plate, so it may be difficult to read on older units. If the plate is illegible, look for a serial number stamped into the generator frame near the mounting feet.

Standby and Commercial Generators

Onan standby units have the data plate on the side of the generator end bell or on the engine block near the starter. The plate includes model, spec, serial, kW rating, voltage, and RPM.

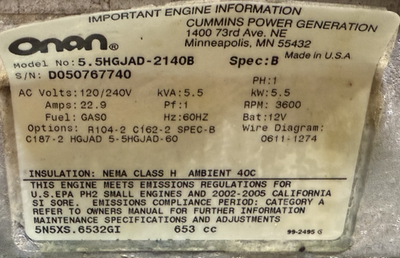

How to Read the Onan Data Plate

Once you locate the data plate, you need to know which numbers matter. A typical Onan data plate contains several fields. Here is how to read them:

Decoding the Serial Number

Onan serial numbers contain a build date code. The first character is a letter representing the year of manufacture:

• A = 1990, B = 1991, C = 1992… through Z = 2015
• After Z, some series restart or use numeric prefixes

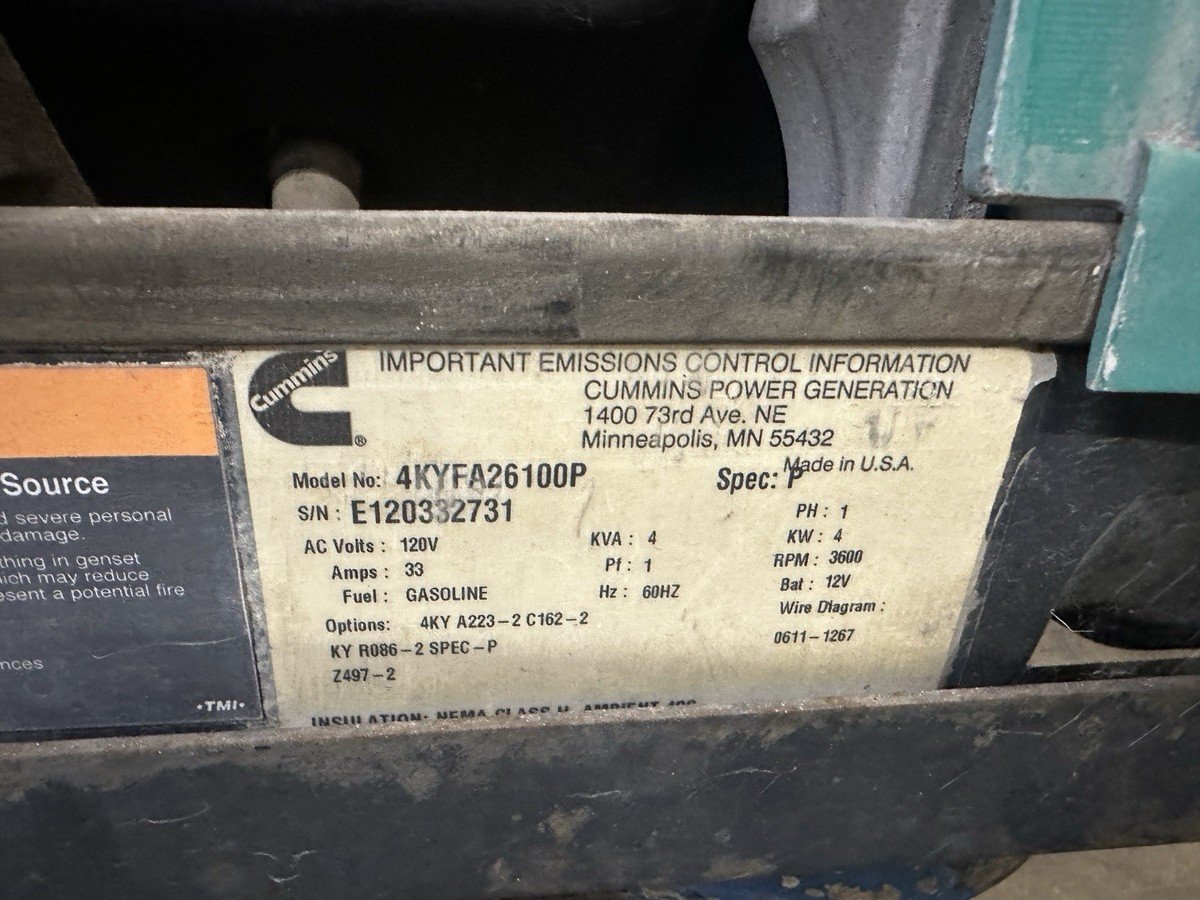

For example, a serial number starting with E (like E120332731) indicates a 2005 build. Knowing the year helps when cross-referencing obsolete Cummins Onan generator parts that have been superseded by newer part numbers.

Common Cummins Onan Generator Parts That Fail

Onan generators are known for reliability, but certain components wear out predictably—especially on RV units that sit for months between uses. When you know which Cummins Onan generator parts fail most often, you can stock spares and avoid being stranded without power.

Fuel Pumps

Onan gasoline and LP generators use an electric fuel pump mounted near the fuel tank or on the generator frame. After 10–15 years, the pump diaphragm cracks and the unit loses prime. Symptoms: the generator cranks but never fires, or it starts and dies within seconds. The fuel pump is one of the most commonly ordered Cummins Onan generator parts for RV owners.

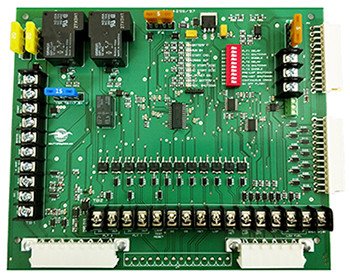

Control Boards (PCB)

The control board manages starting, stopping, voltage regulation, and safety shutdowns. On older units, capacitors fail. On newer units, moisture intrusion corrodes the board edges. A failed control board causes no-crank, no-start, or erratic voltage output. Control boards are spec-specific, so you must match the exact model and spec when ordering.

Air and Fuel Filters

Air filters clog faster in RVs because generators run in dusty campgrounds and storage lots. Fuel filters trap debris and water from the tank. Both should be replaced every 150 hours or annually. At Universal Generator Parts, we stock air filters for all major Onan series including KY, HGJ, and HDK.

Spark Plugs and Ignition Components

Onan gasoline generators use two spark plugs per cylinder on some models. Fouled plugs cause hard starting and rough running. Always use the plug specified for your spec letter—the wrong heat range causes pre-ignition or carbon buildup.

Starter Motors and Solenoids

RV generators sit idle for months, and starter solenoids corrode internally. If you hear a click but no crank, the solenoid is the prime suspect. Starters themselves rarely fail, but the drive gear can stick after long storage.

Using Your Model Number to Order Cummins Onan Generator Parts

Now that you have your model, spec, and serial numbers, ordering Cummins Onan generator parts is straightforward. At Universal Generator Parts, we cross-reference every part against all three identifiers to guarantee fitment.

Here is the exact process:

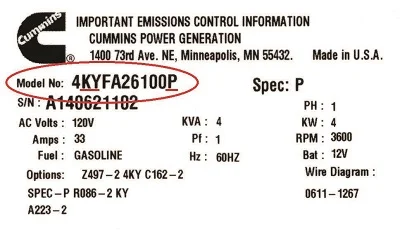

1. Write down the full model number including the spec letter. For example: 4KYFA26100P, not just “4KY.”
2. Visit our parts lookup or search bar. Enter the full model and spec. Our system filters Cummins Onan generator parts to show only items compatible with your exact configuration.
3. Compare OEM and aftermarket options. We stock genuine Onan Green Label parts as well as UGP aftermarket alternatives. Both are matched to the same spec letter.
4. Verify with your serial number if unsure. If your unit has an unusual build date or factory option, include the serial number in the order notes. Our technicians can double-check fitment before shipping.

If you cannot find your model in our dropdown, contact us with a photo of your data plate. We identify units manually every day and can point you to the correct Cummins Onan generator parts within minutes.

OEM vs. Aftermarket Cummins Onan Generator Parts

Cummins manufactures genuine Onan Green Label parts to exact factory specifications. These parts carry the Onan logo, come in factory packaging, and maintain full warranty compliance. For critical components like control boards and fuel pumps, OEM is often the safest choice.

However, OEM Cummins Onan generator parts are not always the most cost-effective option—especially for older units where factory parts have been discontinued or superseded multiple times. That is where quality aftermarket parts become valuable.

At Universal Generator Parts, we offer both:

• Genuine Onan Green Label parts — Factory packaging, exact specs, full warranty support
• UGP aftermarket parts — Cross-referenced to the same model and spec numbers, tested for fit and function, at a lower cost

Our aftermarket Cummins Onan generator parts include fuel pumps, control boards, air filters, and maintenance kits that meet or exceed OEM performance. Every part is backed by our fitment guarantee: if it does not fit, we replace it or refund it.

Frequently Asked Questions

Where is the model number on a Cummins Onan RV generator?
The model number is on a data plate mounted on the side of the generator housing. On slide-out RV generators, it may be on the front face near the control panel. Look for a label that reads “Cummins Power Generation” with fields for Model No., Spec, and S/N.

What is the spec number on an Onan generator?
The spec number is a single letter (or sometimes two letters) at the end of the model number. It defines the exact configuration of your generator, including the engine, fuel system, and control package. Two generators with the same base model but different spec letters may use different parts.

Can I order Cummins Onan generator parts using only the serial number?
Yes, in most cases. If you provide the serial number to a parts specialist, they can look up the model and spec in the Cummins database. However, having the full model and spec visible on the data plate makes the process faster.

What are the most common Onan RV generator parts that need replacement?
The most commonly replaced Cummins Onan generator parts are fuel pumps, control boards, air filters, fuel filters, spark plugs, and starter solenoids. Fuel pumps and control boards top the list for units over 10 years old.

How do I use Cummins QuickServe Online for parts lookup?
Cummins QuickServe Online is the official factory database. Enter your model and spec number to access parts diagrams, manuals, and service bulletins. While it is a powerful tool, it is designed for dealers. For consumer-friendly ordering, use a specialized retailer like Universal Generator Parts that cross-references the same data.

Are aftermarket Onan generator parts reliable?
High-quality aftermarket parts that are specifically cross-referenced to your model and spec are reliable and cost-effective. Avoid universal parts that claim to fit “all Onan generators.” At Universal Generator Parts, our UGP aftermarket line is engineered to match OEM dimensions and specifications for each spec letter.

Where can I buy Cummins Onan generator parts online?
You can buy genuine OEM and aftermarket Cummins Onan generator parts at Universal Generator Parts. We stock parts for KY, HGJ, HDK, MDK, and QG series generators, all matched to your model, spec, and serial number.

Get the Right Onan Part the First Time

Finding the correct Cummins Onan generator parts does not have to be complicated. The key is understanding that Onan uses a model-plus-spec system. Once you locate the data plate, write down all three numbers, and use a parts retailer that cross-references by spec letter, you eliminate the guesswork.

Whether you need a fuel pump for your 4KY RV generator, a control board for your HDK diesel marine unit, or a maintenance kit for your HGJ gas genset, Universal Generator Parts has the Cummins Onan generator parts you need—matched to your exact machine and ready to ship.
